The Basics of Cleanroom Technology and Design
Kjeld Lund July 5, 2024
Introduction

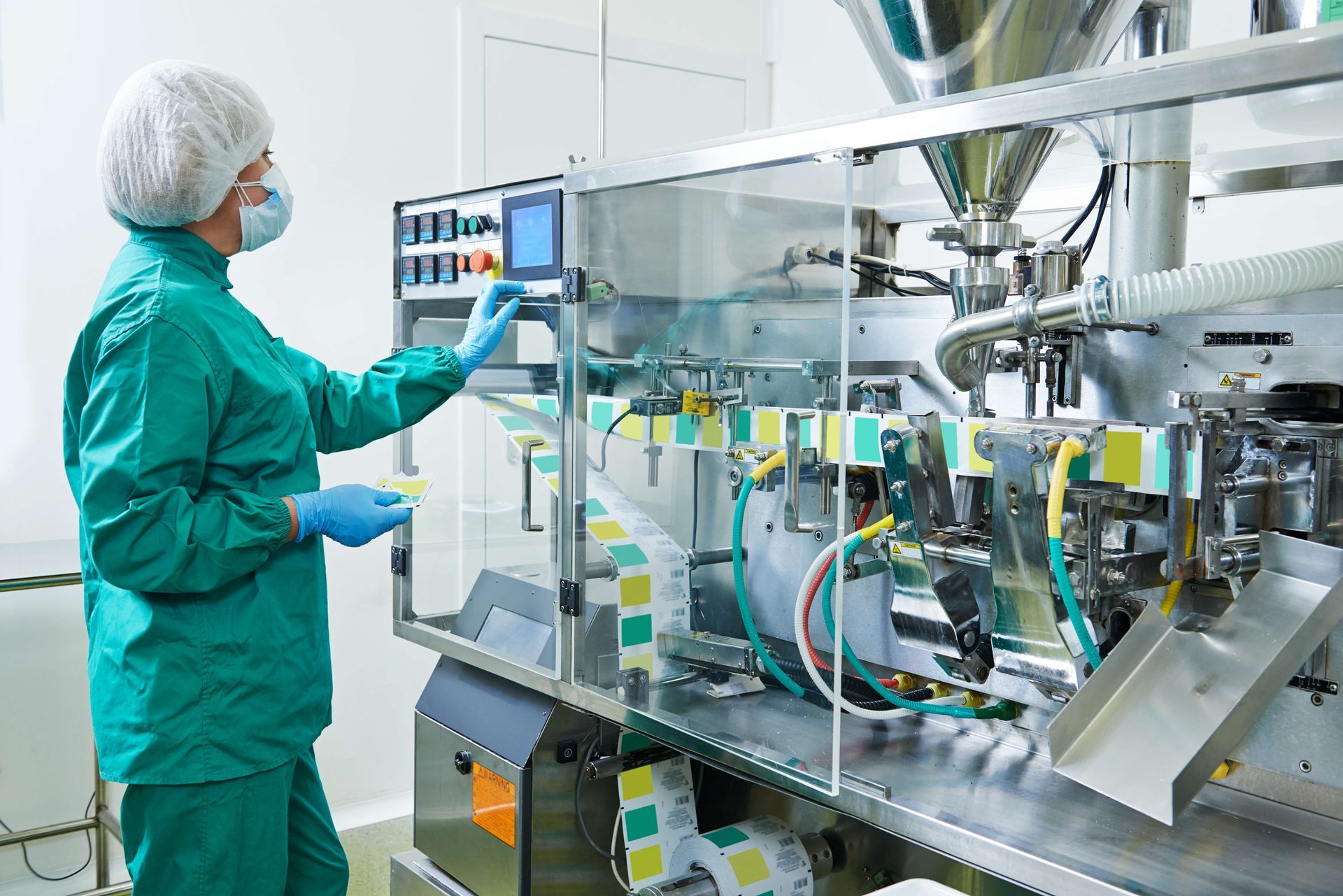

Cleanrooms are specialized environments designed to maintain extremely low levels of particulates, such as dust, airborne organisms, or vaporized particles. They are critical in industries where small particles can adversely affect the manufacturing process. They find extensive use in semiconductor manufacturing, biotech, pharmaceuticals, and aerospace industries, among others.
Definition of a Cleanroom
A cleanroom is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles, and chemical vapors. More precisely, a cleanroom has a controlled level of contamination that is specified by the number of particles per cubic meter at a specified particle size.
Importance of Cleanrooms
The primary function of a cleanroom is to control the environment by limiting the presence of sub-micron particles and adjusting environmental parameters like temperature, humidity, and pressure. The control of environmental factors is crucial for the successful production of high precision products.
Cleanroom Standards
Cleanrooms are classified according to the cleanliness level of the air inside them. The most used standard is the ISO 14644-1 which replaced the earlier Federal Standard 209E. This ISO standard includes classes 1 to 9, with Class 1 being the cleanest. The class defines the maximum allowable number of particles (0.1 microns and larger) per cubic meter of air.
Design Considerations
The design of a cleanroom varies based on its use, size, and complexity. Here are key considerations in cleanroom design:
- Airflow Patterns: Cleanrooms maintain strict control over airflow, using laminar or turbulent air flow systems. Laminar, or unidirectional, air flow systems direct filtered air downward in a constant stream. Turbulent, or non-unidirectional, systems use both laminar air flow hoods and non-specific airflow patterns to maintain clean conditions.
- HVAC Systems: The heating, ventilation, and air conditioning (HVAC) systems used in cleanrooms control the temperature and humidity to precise levels, ensuring that the environment is optimal for the processes handled within the cleanroom.
- Materials Used: All materials used inside a cleanroom must be non-particle shedding and easy to clean. This includes everything from the construction materials for walls and floors to the furniture and tools used inside the room.
- Entry and Exit Protocols: Personnel and materials entering and exiting the room undergo strict protocols. For personnel, these might include wearing special clothing, using air showers, and adhering to specific procedures for entering and exiting. Materials and equipment typically pass through airlocks and are cleaned to meet cleanroom standards.
Maintaining a Cleanroom
Maintaining a cleanroom involves routine cleaning and monitoring. Surfaces must be wiped down with specialized products that do not release contaminants. Moreover, the air filtration systems must operate continuously, and their performance must be monitored and maintained to ensure they function properly.
Technologies Used
Advanced technologies such as HEPA and ULPA filters are common in cleanrooms. These filters are effective at trapping particles as small as 0.1 to 0.3 microns. Additionally, automation and robotics are increasingly employed in cleanrooms to minimize human interaction and thus reduce contamination.
Conclusion
Cleanrooms are vital for industries where small particles can interfere with manufacturing processes. The design and maintenance of cleanrooms require careful consideration and adherence to strict protocols and standards. As technology evolves, so too does cleanroom technology, with innovations focusing on increasing efficiency and minimizing contamination risks.
This overview provides a foundation for understanding the critical components and considerations of cleanroom design and operation. For anyone entering industries where cleanrooms are used, a deeper understanding of these environments is essential.
